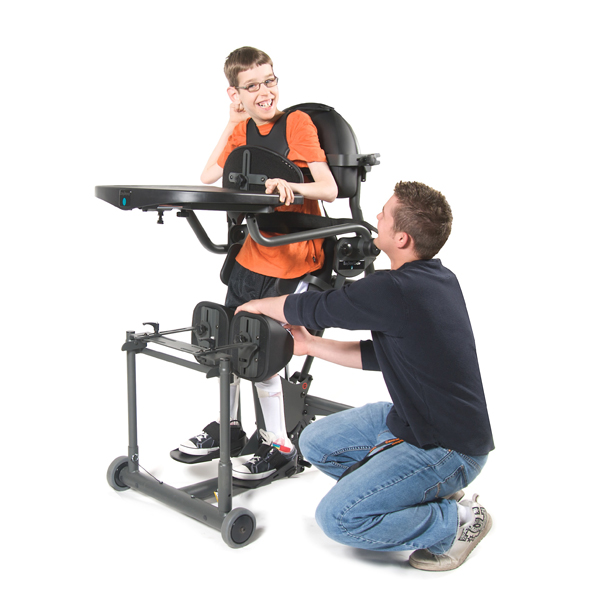

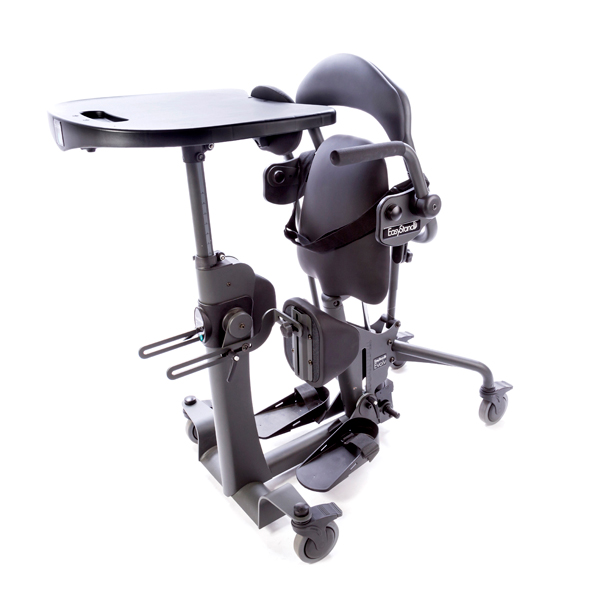

EasyStand Evolv Medium Standing Frame



Description:

Fits individuals from 4’0-5’6″ and up to 200 lbs. Seat Depth Range (from seat pivot) 14″-19″.

The EasyStand Evolv is the most supportive and comfortable sit to stand stander available. With over 60 options and configurations, each unit can be built specifically for an individual or facility. These options, that would normally be custom modifications, allow a stander to be configured for specific needs.

Positioning

The optimal standing position has been perfected in the Evolv standing frame. By strategically placing the pivot points of the stander in line with the body’s natural pivot points, options like the hip supports, lateral supports, and head support remain in place from sitting to standing, minimizing shear. When positioned correctly, the contoured seat provides a maximum over-center stretch for various body types.The Evolv also accommodates for hip and knee contractures through proper positioning of the footplates and optional independent knee pads.

Accessibility and Independence

The Evolv’s open base makes independent transfers easier. A larger Transfer Seat or Rotating Seat can also be added to make transfers more manageable. To make standing pivot or lift assist transfers easier, an optional Swing-Away Front or Removable Back can be added. The user can independently achieve the standing position with the manual hydraulic actuator or optional push-button Pow’r Up Lift.

Safety and Convenience

The Evolv standing frame provides a safe and supportive transition to standing. It allows the user to stand in three easy steps – adjust, transfer, and pump up. Both caregivers and users are more comfortable with the Evolv because of the safe and easy lateral transfer and supportive transition to standing. Don’t just take our word for it – see what others have to say about the versatility and convenience of the Evolv.

Specification (Base Unit): Approximate Height Range: 122-168cm
Weight Limit: 90kg
Maximum Mass: 69kg
Seat Depth Range: 36-48cm
Seat to Footplate Range: 28-46cm
Knee Width: 23cm
Kneepad Depth Range: 5-18cm
Seat Height: 55cm
Seat Dimensions: 40x44cm
Standard Tray Size: 53x61cm
Tray/Chest Pad Depth Range: 0-27cm
Standard Tray Height Range: 39-77cm
Frame Footprint: 67x85cm
Weight of Basic Unit: 46kg
Locking Caster Diameter: 13cm
Frame Colour:

Charcoal

Fabric Colour:

Black
