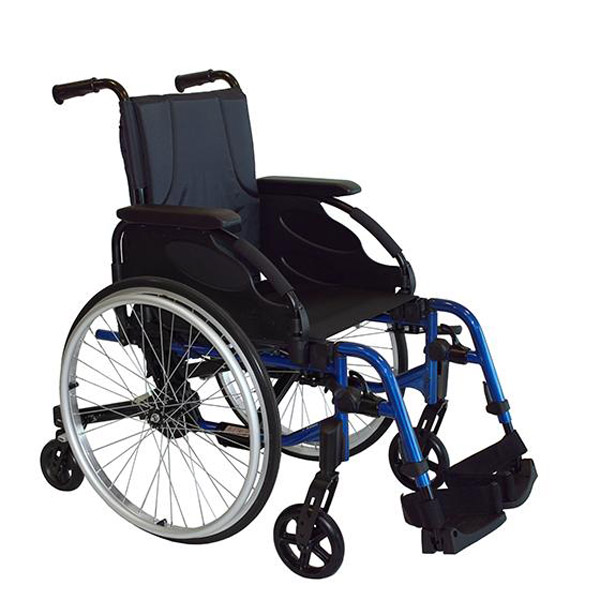

Invacare Action 3NG MWP Manual Wheelchair
| Overview: |
The Action 3NG MWP is a 6 wheeled manual wheelchair, designed from the successful Action 3 NG. Sharing an extensive range of cross-compatible options and accessories with the renowned Action range, this highly configurable foldable chair can be set-up to meet many individual needs. By moving the rearwheels forward, it provides easier access to the handrims, and enhances manoeuvrability. This outstanding design offers a unique resting position: thanks to the wheels added at the back. The chair can easily be tilted and is able to achieve 25° of seat tilt. |
|
| Features: |
|
|
| Specification: | Seat Width: | 430 / 455 / 490 / 505 mm |
| Seat Depth: | 400 / 450 mm | |
| Seat Angle: | 3° | |
| Seat Height: | 460 - 485 mm | |
| Backrest Angle: | 7° / 0° - 30° / – 15° - +15° | |
| Backrest Height: | 350 - 510 mm | |
| Front Frame Angle: | 80° / 0 - 75° | |
| Footrest Length: | 200 - 400 / 330 - 460 / 440 - 510 mm | |
| Armrest Height: | 230 / 170 - 295 mm | |
| Driving Unit Width: | Seat width + 190 mm | |
| Total Width Folded: | 295 mm | |
| Total Height: | 810 - 1040 mm | |
| Total Length inc. Footrests: | 1036 - 1124 mm | |
| Total Weight: | 17.6 kg | |
| Maximum User Weight: | 125 kg | |
| Frame Colours: |
|
|
| Upholstery Colours: |
|
|
