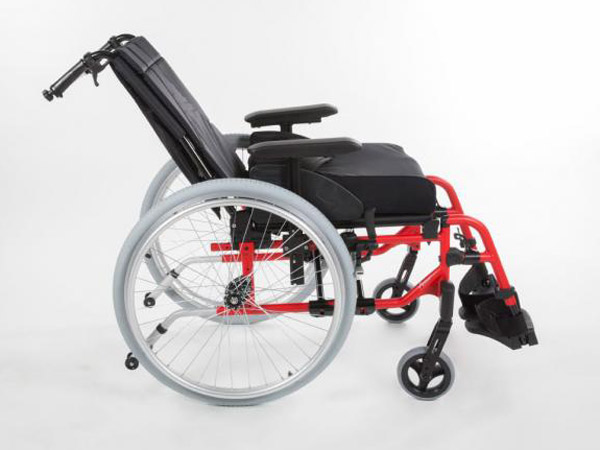

Invacare Action 4 NG HD Manual Wheelchair



Overview:

The Invacare Action 4NG is the most durable model in the Action family. Built to accommodate individuals who maybe taller and heavier with a reinforced chassis and double cross brace system. Ensuring reliability and durability whilst maintaining a lightweight aluminium frame.

Now lighter than ever before from 14.0kg, the Action 4NG benefits from aluminium rear wheel supports, a lightweight castor housing as standard and the option of lightweight rear wheels. Ensuring that the wheelchair is as light as possible to help with efficient energy transfer when propelling and is easy to store and transport to suit your everyday activities. With great manoeuvrability and drive performance, the Action 4NG is perfect for use indoors and outdoors.

Designed with a smart multi-functional rear wheel support that facilitates the height adjustment range of the chair along with the position of the rear wheel, allowing the chair to be as stable or as active as you need. The benefit of this design allows your chair set up, to be adjusted as your wheelchair skills and confidence improve.

Renowned for it’s high level of configuration possibilities with a vast range of options and accessories to adapt the wheelchair according to your functional and clinical requirements. A range that has been specifically developed for easy cross compatability and can be refurbished and re-issued using a familiar selection of options that are both simple to adapt and readily available.

Features:
  • Available in a self-propel, transit or heavy-duty version.
  • Aesthetically pleasing with smart black standard features and a choice of 8 vibrant frame colours to suit your personal taste.
  • Precise seating position can be achieved with the new angle adjustable backrest system from -15° to +15°.
  • A range of options and accessories to support your seating and positioning requirements.
Specification (dimensions for self-propulsion model): Seat Width: 380 / 405 / 430/ 455 / 480 / 505 / 555 / 605 mm
Seat Depth: 400 / 450 / 500 mm
Seat Angle: 0° / 3° / 6°
Seat Height:

Self propel 360 / 385 / 410 / 435 / 460 / 485 / 510 mm

Transit 460 / 485 / 510 mm

Backrest Height:

Self Propel 325 - 510 mm

Transit 380 - 460 mm

Armrest Height: 200 - 280 / 240 / 170 - 300 / 210 - 350 mm
Length of Footrests: 200 - 400 / 330 - 460 / 440 - 510 mm
Backrest Angle: 0° / 7° / 0° - 30° / – 15° - +15°
Total Width:

Self propel - Seat width + 190 mm

Transit + 160 mm

Total Height:

Self propel 810 - 1040 mm

Transit 910 - 1040 mm

Total Length inc. Footrests: 995 - 1170 mm
Maximum User Weight: 160 kg
Total Weight:

Self propel 14.0 kg

Transit 14.5kg

Transport Weight:

Self propel 8.0 kg

Transit 11.7kg

Frame Colours:
  • Hypnotic Purple
  • Matt Black
  • Blue Pop
  • Matt Red
  • Pearl White
  • Slate Grey
  • Electric Green
  • Anthracite Black
Upholstery Colours:
  • Black Nylon
