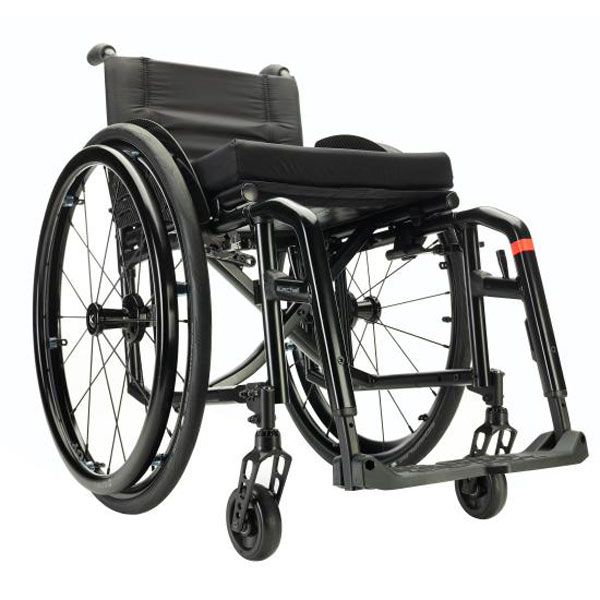

Invacare Kuschall Compact Manual Wheelchair


The Küschall Compact is the traditional style cross folding wheelchair in the range, but built with a difference.  The unique design of the cross brace allows for effortless folding with a built-in rigidity making it energy efficient and light to propel, comparable to that of a rigid frame wheelchair. The Küschall Compact is built to support you through your everyday activities.

Küschall Compact is built to the highest quality with a new lightweight and modern aluminium hydroformed frame. Available with a fixed front frame for a more active appearance or with swing away removable leg rests providing easier access and convenience for standing transfers. The wide range of adjustment and configuration possibilities make the Küschall Compact a versatile and functional choice.

The new hydroformed frame brings a unique and modern styling to the Küschall Compact.   Additionally, the frame profile provides increased rigidity and ergonomic grip to support comfortable repositioning and transfers.  The combination of design and built-in precision results in an ultra-light wheelchair that delivers an exceptional driving experience.

  • Folding system: Easy folding is just one of the key features of the Küschall Compact, made possible with the unique shaped cross brace design, making it the ideal choice for those with limited hand function or reduced strength.
  • Keep On Track: The intuitive castor housing adjustment will ensure your wheelchair is always performing at its most energy efficient, to keep you propelling easier for longer.
  • Outstanding Functionality: The 70°or 80° swing away, removable legrest options come complete with an adjustable precision locking mechanism to reduce free play within the leg rests. Elevating and amputee leg rests are also available on this highly versatile wheelchair.
  • Compact & Transportable: Küschall Compact offers a fully folding backrest option which is designed to fold over the seat rails, for compact storage and easy transportation.
  • Fully Adjustable: Küschall Compact offers easy and robust adjustment possibilities to all the key areas of the wheelchair ensuring the perfect level of support for comfort that lasts.
  • Enhanced Comfort: Küschall Compact offers an extensive selection of options and accessories to support a wide variety of comfort needs and personal styles.
Specification: Seat Width: 280 - 500 mm in increments of 20 mm
Seat Depth: 320 - 500 mm in increments of 20 mm
Seat Height: Front: 380 - 530 mm
Rear: 360 - 500 mm
increments of 10 mm
Knee-to-Heel Length: 200 - 510 mm in increments of 10 mm
Backrest Height: 300 - 510 mm in increments of 15 mm
Backrest Angle: 82° / 86° / 90°/ 94° / 98° / 102°
Frame Angle: 70º / 80º Straight or tapered
Total Width: SW + 180 mm
Total Width Folded: Approx. 290 mm
Total Length:

70°: approx. 870 – 1220 mm
80°: approx. 850 – 1200 mm

Camber: 0º / 3º
Maximum User Weight: 130 kg
Total Weight: Approx. 9.6 kg
Transport Weight: Approx. 6.7 kg
Frame Colours:

Space Black, Anthracite Grey, Pure White, Carmine Red, Azure blue, Flashy Yellow, Atomic Violet, Black Glossy, Silver Grey, Royal Blue, Ruby Red, Dynamite Orange, Forest Green

Colour (Other): Light Grey, Gold, Red, Blue, Dark Grey, Black
