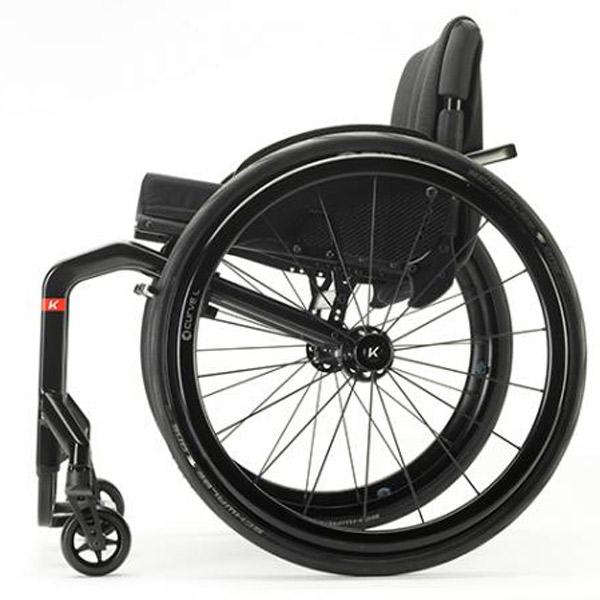

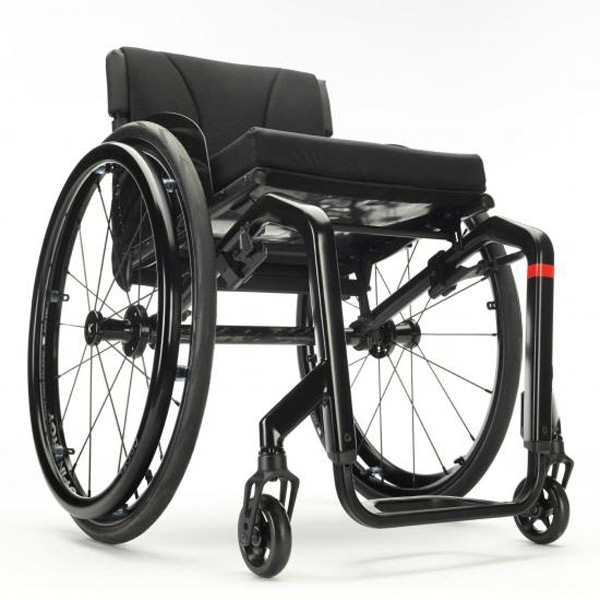

Invacare Kuschall K Series 2.0 Manual Wheelchair

Overview: With its iconic minimalist open frame and lightweight design, the K-Series allows you the ability to enjoy everyday activities; whether it’s getting to and from work or pursuing your exciting hobbies, the K-Series gives you the freedom to be you.
  • HYDROFORMED FRAME: Ergonomic grip, ideal for repositioning and transfers, frame angle available in both 75° and 90°
  • LIGHT ACTIVE BRAKE: The new aluminium brake, with a minimalist design, brings lightness to unprecedented levels
  • TAPERED FRAME: Allows the wheelchair to contour to your body for a sleek aesthetic
  • FOOTBOW: Completely redesigned with a flat surface for greater comfort, and perfect positioning
  • NEW BACKBRACE: Ergonomic back brace for increased grip when lifting during transfers
  • BACKREST: Folding backrest with six possible angle adjustments for different positioning needs
  • SEAT MODULE: The seat module offers five different centre of gravity positions, allowing a choice of high activity or increased stability within the wheelchair, as standard
  • CASTOR HOUSING: New aluminium profile welded to the front frame tube
  • FORK: New clean design and integrated bearings
Specification: Seat Width: 320 – 500 mm in increments of 20 mm
Seat Depth: 350 – 525 mm in increments of 25 mm
Lower Leg Length: 290 – 480 mm in increments of 10 mm
Backrest Height: 270– 480 mm in increments of 15 mm
Backrest Angle: 74° / 78° / 82° / 86° / 90°
Seat Height: front: 450 – 520 mm
rear: 380 – 490 mm
in increments of 10 mm
Frame Angle: 75°/90° V-frame or tapered
Total Width: SW + 170 mm
Total Length: 75°: approx. 830 - 1055 mm
90°: approx. 760 - 985 mm
Centre of Gravity: 80 mm/ 95 mm/ 110 mm/ 125 mm/ 140 mm
Camber: 0º / 3º / 6º
Total Weight Unloaded: approx. 7.8 kg
Transport Weight: approx. 5.1 kg
Maximum User Weight: 130 kg
Frame Colours:
  • Pure White
  • Anthracite Grey
  • Space Black
  • Carmine Red
  • Azure Blue
